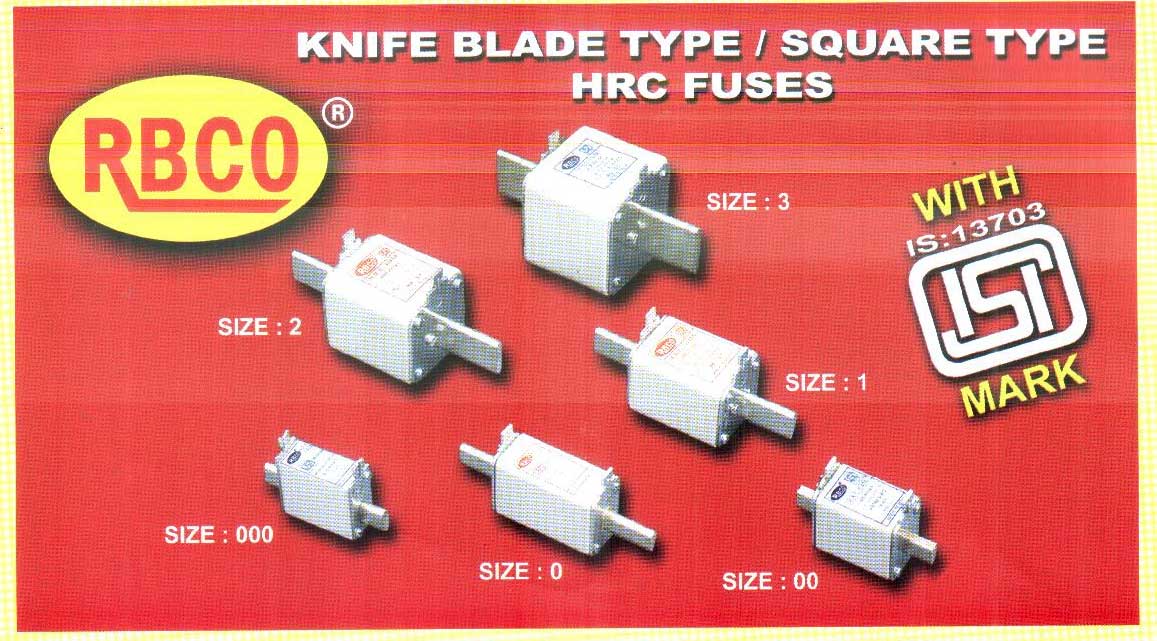

SQUARE DIN / KNIFE BLADE @ FUSES 00 TO S3

Our prestigious clients can avail from us, an excellent quality array of Square DIN Type Fuses. These fuses are manufactured using advance methodologies and equipment as per the set industry standards. Moreover, our quality controllers inspect this range on diverse parameters in order to ensure delivery of defect-free product at clients' end. Available in various capacities, clients can avail these fuses from us rock bottom prices.

Special Features:

Strict compliance to performance & dimensional requirement of Indian & International standard
IS 13703 – 1993, IEC 269 – 1987, BS: 88 – 1988
Low power loss ensures cool running & long life
High breaking capacity 80 KA at 500 V (AC)
Extremely low let through 12 T & cut off currents at short circuits
Positive indication of fuse operation by flag indicator
Fully tested & certified at ERDA Baroda / CPRI Bhopal / RTC Mumbai

Fuse Sizes	a1	a2	a3	a4	b	c1	c2	d	e1	e2	e3	e4	f
RB-S000	78.5	52.65	45	49	15.1	35	9.5	2	39.5	20.2	17	6	7
RB-S00	78.5	52	45	49	15.1	35	9.5	2	43	28.5	17	6	11
RBS0	125	66	62	66.8	15.1	35	9.5	2	43	28.5	17	6	11
RB-S1	135	68.9	62	66.8	20.2	40	9.9	2.5	43	45.8	20	6	11
RB-S2	150	70	62	66.8	25.1	48	10	2.5	57.2	57	20	6	13
RB-S3	150	71	62	67	32.5	60	10	2.5	72	72	20	6	16
