Knife Type Square Type DIN Type HRC Fuses
Leading Manufacturer of Square DIN Type Fuses-SIZE 000 & 00, Square DIN Type Fuses-SIZE 0, Square DIN Type Fuses-SIZE 3, Square DIN Type Fuses-SIZE 2 and Square DIN Type Fuses-SIZE 1 from Mumbai.

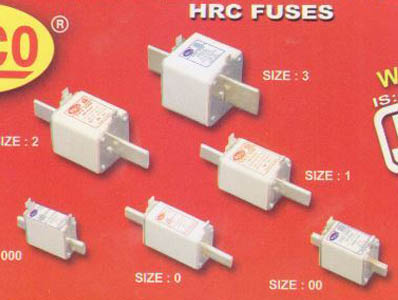

Square DIN Type Fuses-SIZE 000 & 00
Our prestigious clients can avail from us, an excellent quality array of Square DIN Type Fuses. These fuses are manufactured using advance methodologies and equipment as per the set industry standards. Moreover, our quality controllers inspect this range on diverse parameters in order to ensure delivery of defect-free product at clients' end. Available in various capacities, clients can avail these fuses from us rock bottom prices.
Features
- Strict compliance to performance & dimensional requirement of Indian & International standard
- IS 13703 – 1993, IEC 269 – 1987, BS: 88 – 1988
- Low power loss ensures cool running & long life
- High breaking capacity 80 KA at 500 V (AC)
- Extremely low let through 12 T & cut off currents at short circuits
- Positive indication of fuse operation by flag indicator
- Fully tested & certified at ERDA Baroda / CPRI Bhopal / RTC Mumbai
Specifications
| Fuse Sizes | a1 | a2 | a3 | a4 | b | c1 | c2 | d | e1 | e2 | e3 | e4 | f |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RB-S000 | 78.5 | 52.65 | 45 | 49 | 15.1 | 35 | 9.5 | 2 | 39.5 | 20.2 | 17 | 6 | 7 |
| B-S00 | 78.5 | 52 | 45 | 49 | 15.1 | 35 | 9.5 | 2 | 43 | 28.5 | 17 | 6 | 11 |
| RBS0 | 125 | 66 | 62 | 66.8 | 15.1 | 35 | 9.5 | 2 | 43 | 28.5 | 17 | 6 | 11 |
| B-S1 | 135 | 68.9 | 62 | 66.8 | 20.2 | 40 | 9.9 | 2.5 | 43 | 45.8 | 20 | 6 | 11 |
| RB-S2 | 150 | 70 | 62 | 66.8 | 25.1 | 48 | 10 | 2.5 | 57.2 | 57 | 20 | 6 | 13 |
| RB-S3 | 150 | 71 | 62 | 67 | 32.5 | 60 | 10 | 2.5 | 72 | 72 | 20 | 6 | 16 |
Square DIN Type Fuses-SIZE 00 & 000
Leveraging upon our technologically-advanced production facility, we are highly engaged in manufacturing and supplying a Knife Blade Fuses to our respected clients spread all across the nation. The offered fuses are extensively appreciated and demanded in market for their salient features such as shock proof, perfect finish etc. Further, these fuses are checked on different parameters to ensure that we are delivering only flawless product to our clients.
Features
- Guaranteed quality & complete user confidence
- Reduces electro-magnetic stress & damage to contacts
- Reduces thermal stress, fire risk & damage to equipment
- Cool running & longer life of equipment
- Low power dissipation & low temperature rise
- Superior Breaking capacity on low overload currents
- Fuse base are available for all rating of fuse links up to 630 A & voltages up to 500 V, 50 Hz AC
- Fuse base have been tested for compliance to IEC 269 / IS 13703
- Sufficient contact pressure is maintained by ring springs throughout the life of the base which also does not allow temperature rise to exceed
- Contact material is 99.9$ ETP Grade Copper which is silver plated & designed to withstand electrodynamics Short circuit stresses
Specifications
| Fuse Base sizes | h | q | n1 | n2 | p1 | p2 | r | s | t | v | w | w2 | x | y | z |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RB-S00 | 100 | 85 | 22 | 35.8 | 33.5 | - | 17.3 | 20.7 | 20.6 | 56.5 | 0 | 25 | 14.06 | 7.5 | 2.4 |
| RB-S1 | 175 | 146 | 36.9 | 56 | 54.5 | 35 | 29.8 | 37.6 | 32.6 | 80 | 30 | 25 | 20.1 | 10.5 | 2.6 |
| RB-S2 | 200 | 152 | 42.9 | 56 | 59.6 | 35 | 32.6 | 44.6 | 33.8 | 80 | 30 | 25 | 20.1 | 10.5 | 3.6 |
| RB-S3 | 210 | 152 | 42.4 | 56 | 58.8 | 35 | 32.2 | 48.4 | 43.1 | 80 | 30 | 25 |

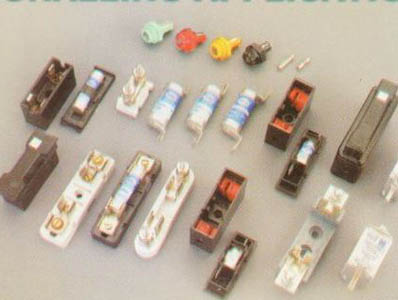

HRC Fuse Links
To cater to the demands of our customer’s consideration, we are extremely engaged in manufacturing and supplying a comprehensive range of Square Type HRC Fuse Links. Widely appreciated in the market for its excellent quality and perfect finish, these fuse links are rigorously tested on various parameters of quality. Technology employed in manufacturing process is highly innovative with the use of top notch quality raw material. Further, our clients can avail it from us at competitive price.
Features
- Excellent finish
- Shock proof
- Heat resistance
