ISOLATORS & MCCBS

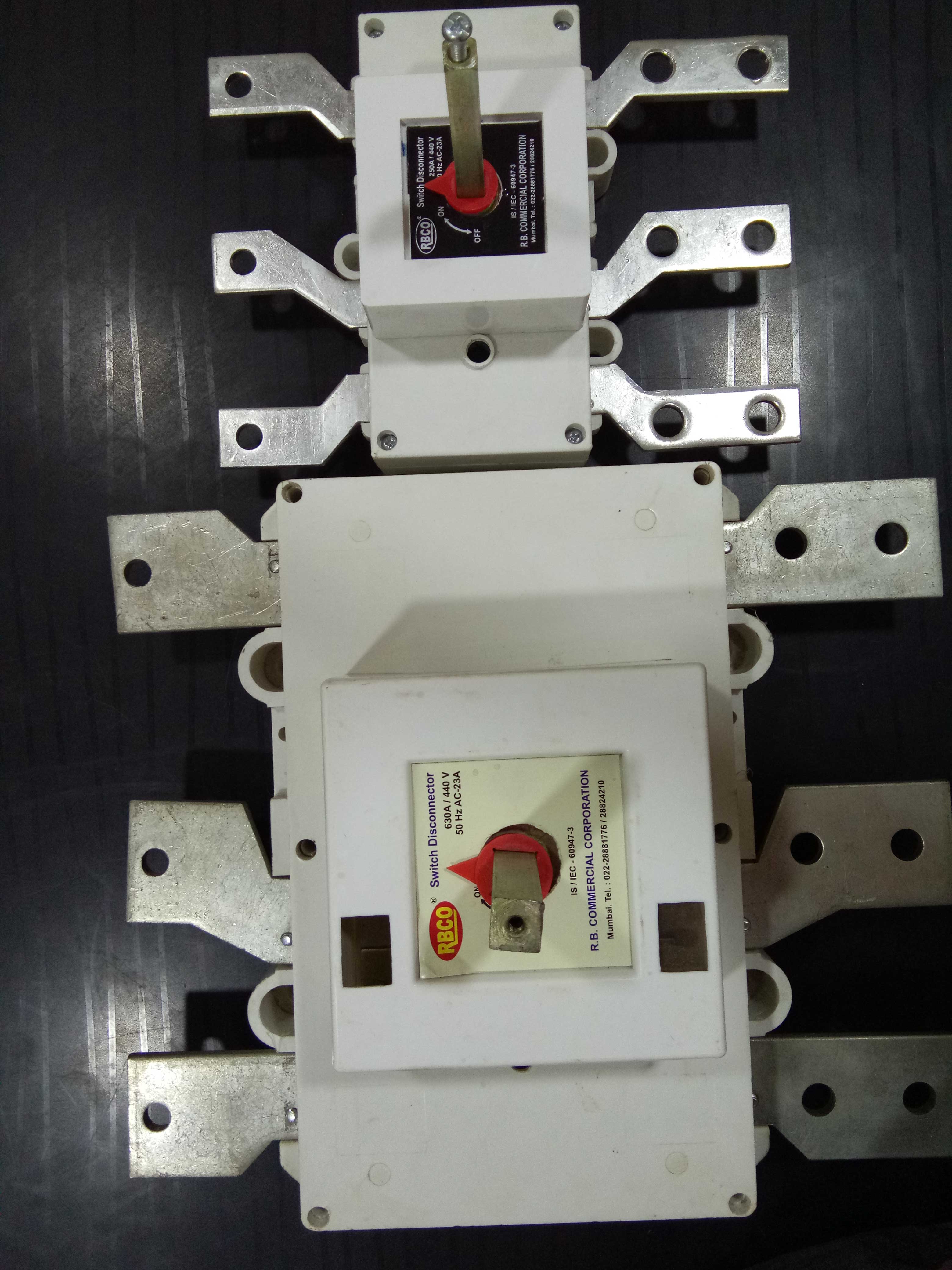

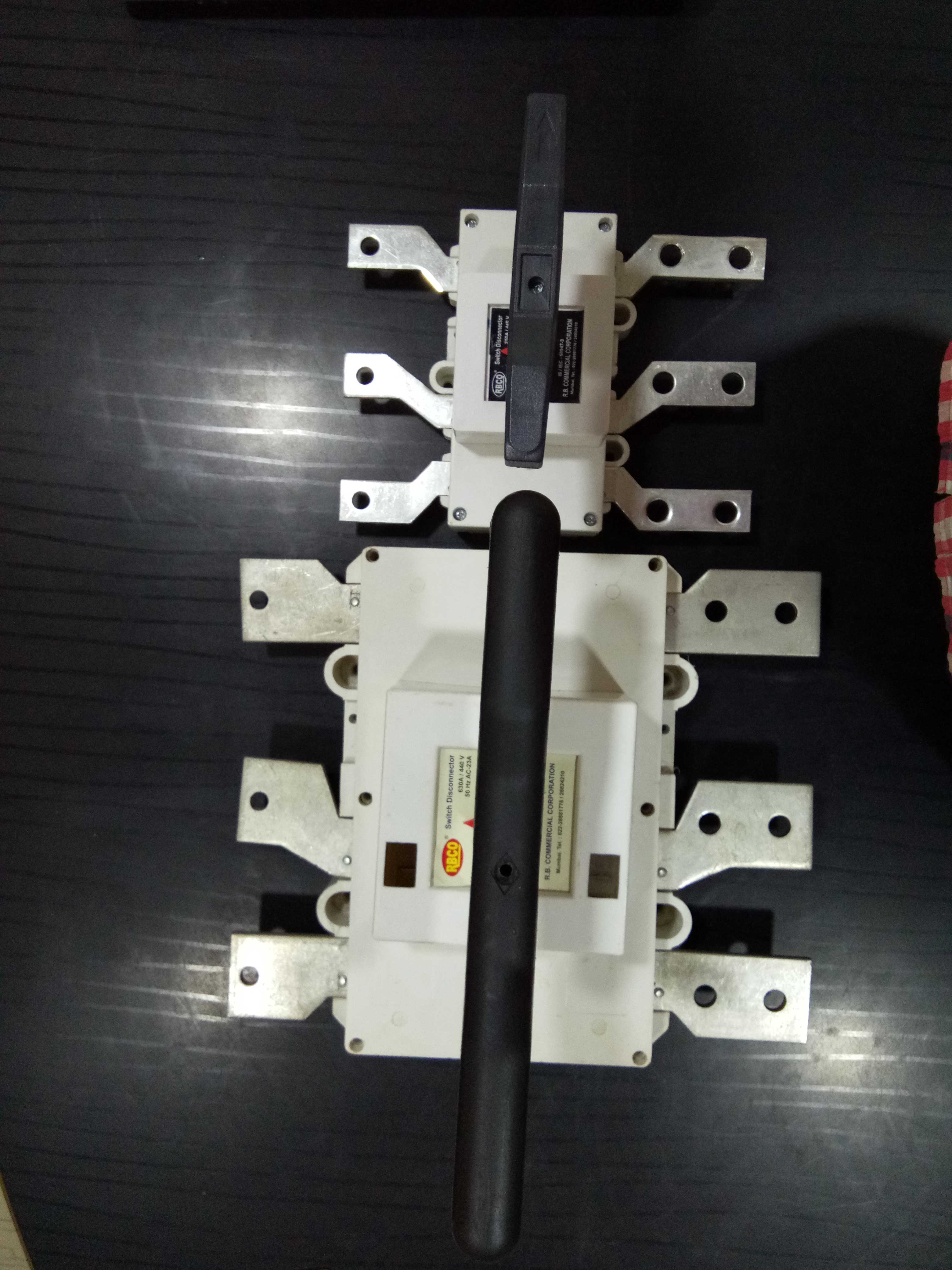

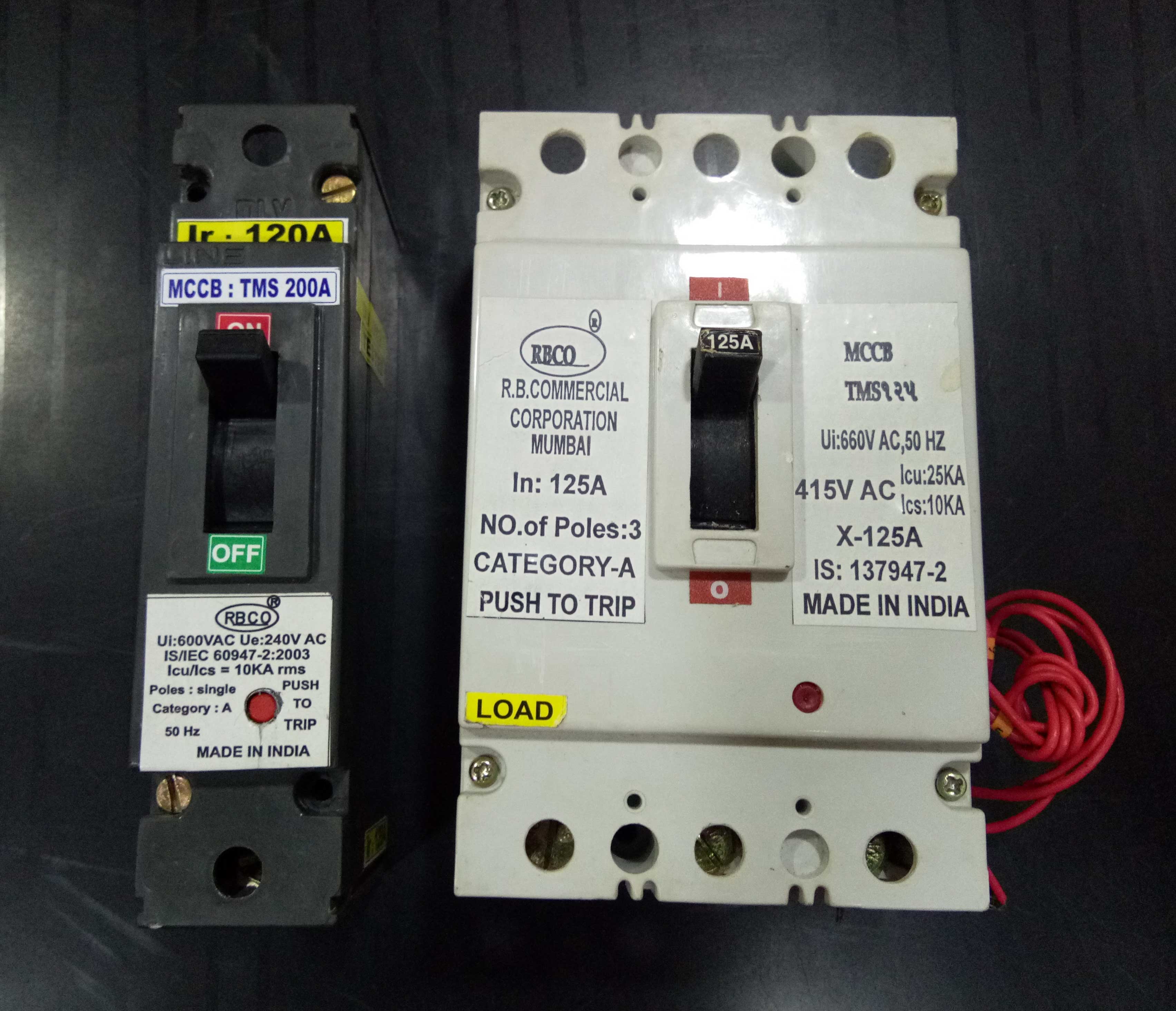

R B COMMERCIAL corporation is one of the prominent manufacturers of mccbs and switch disconnections desiged and manufacture in acordance with IS and IEC standard and offering high performance and reliable mccbs and switch disconnections. Our MCCB range includes TMS,TME and TM current rating ratings from 16A to 630A. Both TME and TM MCCBs are thermal magnetic type & are available in 3 and 4 pole for overload and short circuit current protection. These MCCBs provide protection for transformers, distribution circuits, cable and motor equipment. Our TMS MCCB range is tested to 37.5 ka and 50 ka at 415V ac short circuit current breaking capacities. Our TMS MCCB range are single pole with currnt rating 16A to 160A and tested to 10 ka, 18 ka and 25 ka short circuit current breaking capacities. Switch disconnector/Isolators are available with current rating from 100A to 630A,440 V AC with a short circuit withstand current of 4arms for 2 seconds for 250A.

Specifications

TITLE CERTIFICATION TYPE
QUALITY ISO 9001:2008
MCCB=TME / TMS IS/IEC 60947-2, ISSUED BY CENTRAL
ICU=ICS=10KA POWER RESEARCH INSTITUTE (CPRI)
ICU=18XA, 25KA=ICS 75% BANGALORE
MCCB-TM
ICS = ICU : =25KA IS/IEC 60947-2, ISSUED BY CENTRAL
ICS=37.5 KA POWER RESEARCH INSTITUTE (CPRI)
ICU=50KA BANGALORE
SWITCH DISCONNECTOR /ISOLATOR IS/IEC 60947-3, ISSUED BY
  ELECTRICAL RESEARCH AND DEVELOPMENT
  ASSOCIATION, VADODARA.
